Carrier AC Installation in Arcadia, CA

How do you size a Carrier AC for an Arcadia home?

Sizing starts with a Manual J load calculation, because the deciding number is the home's actual heat gain, not its floor area and never the tonnage of the old box on the pad. Arcadia sits in cooling-dominant Title-24 Climate Zone 9 against the San Gabriel foothills, with July highs around 91 to 95 F, 45 to 65 days a year at or above 90 F, and frequent Santa Ana spikes past 100 F, so the solar and envelope load drives the calc. We measure the window area and orientation, the attic and wall insulation, the infiltration, and that foothill afternoon sun, then size the system to the result - most Arcadia homes land between 2 and 5 tons.

Oversizing is the most common and most damaging install mistake, and it is exactly what a square-footage guess produces. A condenser that is a ton too big satisfies the thermostat in a few short bursts, never runs long enough to wring humidity out of the air, short cycles its compressor and contactor toward early failure, and leaves rooms uneven. Right-sized, the same Carrier system runs longer, quieter, lower-pressure cycles that hold temperature within a tight band and pull more moisture out. On larger two-story estates we also decide here whether the home needs a Carrier zoning panel so the occupied side conditions independently rather than fighting the whole envelope at once.

Which Carrier AC should you install in Arcadia?

The tier follows the Manual J result, the home's size and layout, and whether you want zoning - not a sales upsell. Carrier renamed its lines, so both the 24/25-series Greenspeed units and the newer 26-series condensers are current, and all of them now leave the factory on R-454B refrigerant. Here is how the families map to Arcadia homes.

The practical upshot: a 1,300 to 1,800 square foot single-story ranch rarely benefits from Greenspeed modulation it cannot use, so a right-sized 26SCA5 plus duct sealing beats overspending on a variable-speed system. A 2,500-plus square foot two-story rebuild that will run zones is exactly where the 24VNA6 earns its premium. We run the load calc before recommending a tier so the recommendation is honest. For the full model-by-model breakdown see Infinity Greenspeed, Performance Series, and Comfort Series.

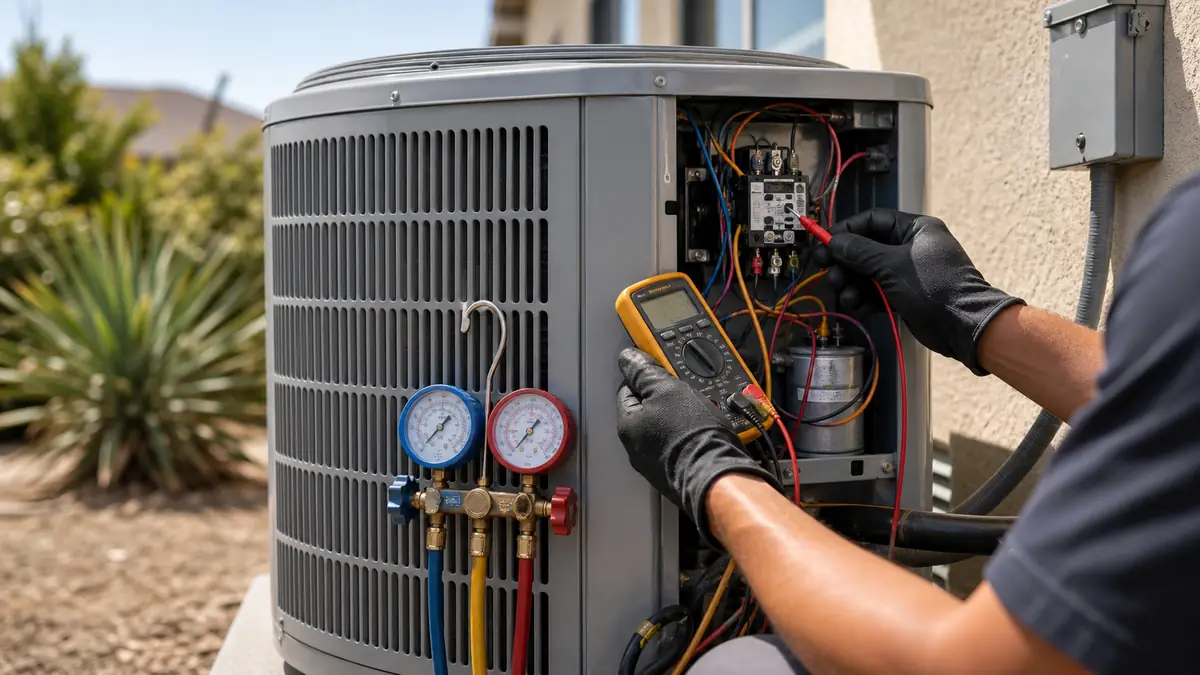

What does a Carrier AC install actually involve?

A real change-out is a sequence, not a single afternoon of swapping a box. Each step exists to protect the equipment, the efficiency rating, and the permit. Here is how an Arcadia install runs from the load calc to the final commissioning.

1. Load calc and design. A room-by-room Manual J sets the tonnage, then we match the outdoor condenser to a rated indoor coil and metering device (TXV or, on Infinity, an electronic expansion valve) so the system carries its AHRI-listed SEER2 - never a mismatched pairing that loses the rating.
2. Permit and pad. We pull the City of Arcadia mechanical permit, confirm condenser clearance and the property-line setback (tight on many 1950s side yards), and set or pour a level pad with vibration isolation away from a neighbor's window.
3. Remove and recover. The old refrigerant is recovered to EPA standards - never vented - and the legacy condenser, coil, and line set are removed. Because new equipment is R-454B, an old R-410A line set is pressure-tested or replaced; it is not blindly reused.
4. Line set, electrical, and condensate. We braze the new line set under flowing nitrogen to keep the interior clean of scale, update the outdoor disconnect and whip to current code, verify the breaker and wire size for the condenser, and run a properly sloped condensate drain with a float switch so a clog cannot flood the home.
5. Evacuate and charge. The sealed system is pulled into a deep vacuum below 500 microns and held to prove it is dry and leak-free, then charged by weight per the Carrier data plate and trimmed by subcooling and superheat - the A2L charge is exact, not topped off by feel.
6. Commission and verify. We set the thermostat or Infinity System Control for the equipment type and staging, run a full cooling cycle, confirm the temperature split and static pressure, and schedule the independent Title-24 HERS rater for refrigerant-charge and airflow verification - plus HERS duct-leakage testing if any ducts were altered.

What does Carrier AC installation cost in Arcadia?

Install price is driven by tonnage, the Carrier tier, the condition of your ducts and electrical, and whether the job is a simple change-out or a zoned design. These are typical 2026 Southern California ranges, not quotes; we put a firm number in writing after the load calc and a look at your ducts and panel.

What moves the number in Arcadia

Two homes of the same size can quote thousands apart, and the spread is almost always in the parts of the job a brochure does not show. The cost drivers we see most here:

• Tonnage and tier: a 2.5-ton single-stage Comfort condenser is a fraction of a 5-ton zoned Greenspeed system - the equipment is the largest line.
• Duct condition: 1950s ranch ducts with an undersized return often need a correction so the new system breathes at its rated static pressure; reusing bad ducts strands the efficiency you paid for.
• Electrical: an old panel or undersized circuit for a variable-speed inverter may need a new breaker, whip, or disconnect to meet code.
• Access and placement: a tight estate side yard, a rooftop pad, or a long line-set run up a two-story wall adds labor a ground-floor swap does not.
• Title-24 verification: the HERS rater visit for charge and airflow (and duct leakage when ducts are altered) is a required line on a Zone 9 install.

How does R-454B refrigerant change a 2026 install?

Every new Carrier residential condenser now ships on R-454B, the A2L low-GWP refrigerant that replaced R-410A across the 24-, 25-, and 26-series in the 2025 transition. For your install that means a few concrete things. The outdoor unit must be paired with an R-454B-rated indoor coil, so you cannot bolt a new condenser onto an old R-410A coil and call it matched - that mismatch usually forces a full change-out. R-454B is mildly flammable (A2L), so the work follows A2L handling, leak-detection, and ventilation practices, and the system is charged precisely by weight rather than topped off by feel. If you already own an R-410A system it is still fully serviceable, but it is on a phase-down clock, which is one more factor we weigh in the repair-or-replace decision.

What does Arcadia's housing stock mean for an install?

The job changes with the neighborhood. In the modest mid-century ranches of Baldwin Stocker and Lower Rancho, the original ductwork was sized for a smaller load and often has a single undersized return, so a fresh condenser only delivers its rated airflow if we correct the return and check static with a manometer rather than reuse the run blind. These homes also have tight side yards where the condenser sits a few feet from the property line, which makes pad placement, clearance, and noise a real design step, not an afterthought. On the mansionized rebuilds going up near Santa Anita Avenue and across Upper Rancho, the risk is the opposite: a large, high-efficiency Greenspeed system choked by a value-engineered duct layout, or a panel without the clean, steady circuit a variable-speed inverter wants. We size the ducts and verify the electrical to the equipment on those jobs so the variable-speed investment actually pays off. Either way, Arcadia's foothill solar load and Santa Ana heat mean the cooling design carries the system, which is why we lead with the load calc.

Do you handle the permit and Title-24 HERS verification?

Yes, and we build it into the job from day one rather than leave it to you. A condenser or full-system change-out is a permitted mechanical project through the City of Arcadia building division. Title-24 in Climate Zone 9 generally requires independent HERS field verification of refrigerant charge and airflow on a new split system, and HERS duct-leakage testing whenever ducts are altered or replaced. We pull the permit, schedule the third-party HERS rater after the install, and hand you the documentation - the same record that protects the system's registered Carrier warranty. Because the energy code tightens with each cycle, we confirm the exact verification triggers for your specific scope before the work starts.

Are there rebates on a new Carrier AC in Arcadia?

There can be, mostly on the high-efficiency and heat-pump side, but the figures move constantly so we will not quote one we cannot confirm is live. Reported utility incentives include LADWP heat-pump rebates up to roughly $2,500 per ton scaled by efficiency, about $1,000 per system from SCE, and TECH Clean California single-family incentives in the $1,000 to $1,500 range - though the TECH single-family pool was reported fully reserved statewide in early 2026, with a waitlist and phased reopenings. A straight like-for-like AC swap rarely qualifies; a high-efficiency heat-pump conversion is where the money usually is. And the federal 25C tax credit that used to reach qualifying equipment lapsed on December 31, 2025, so a 2026 install earns no current-year federal credit. Confirm which utility serves your Arcadia address and what funding is open before you bank on a number; the Carrier buying guide lays out the caveats.
