Carrier AC Short Cycling in Arcadia, CA
Up front: Arcadia Carrier HVAC finds why your Carrier condenser starts and stops too often across Arcadia 91007 and Santa Anita Oaks - usually a dirty coil, restricted airflow, low refrigerant, or an oversized unit. Call (213) 766-5980 or book online; fixes range from a low-cost coil clean to refrigerant repair at $225 to $1,500.
Fast reference
- Short cycling = the system runs for only a few minutes, stops, and restarts repeatedly.
- Top causes in Arcadia heat: dirty condenser coil and high-pressure trips, clogged filter, low charge.
- Also: failing capacitor, oversized unit, thermostat placement, or a control/sensor fault.
- Infinity code 44 flags excessive air-delivery restriction; 54/56 flag sensor issues.
- Repair lanes: coil clean and filter low cost; refrigerant $225 to $1,500; board $400 to $2,000.
- Service area: Arcadia 91006, 91007, 91066, 91077. Hours: Mon-Fri 8am-6pm, Sat 9am-3pm.
Why does my Carrier AC short cycle in Arcadia?
Short cycling is the system protecting itself or losing its setpoint too fast. In Arcadia's Zone 9 heat the most common version is a high-pressure trip: a condenser coil packed with foothill dust and Arboretum cottonwood cannot reject heat on a 100 F day, head pressure spikes, a safety opens, the unit stops, cools down, and restarts - over and over. The same pattern comes from a clogged filter or undersized return starving the indoor coil, or from low refrigerant after a slow leak. Each of these is fixable and far cheaper than the compressor everyone fears.
How do I tell the causes apart?
| Pattern | Likely cause / first check | Typical lane |
|---|---|---|
| Worse on hottest days, hot condenser | Dirty condenser coil, high-pressure trip | Coil clean, low cost |
| Weak airflow, iced indoor coil | Clogged filter / undersized return (code 44) | Filter/duct; see frozen coil |
| Cools poorly everywhere, long history | Low refrigerant from a leak | $225 - $1,500 |
| Hard starts, hums before stopping | Weak run capacitor | $150 - $450 |
| Cools fast then off, never long runs | Oversized unit or thermostat placement | No cheap fix; sizing matters |
What does the oversizing problem look like here?
Arcadia has a specific version of this. When an older estate's condenser was replaced years ago, installers often "rounded up" the tonnage to be safe. An oversized single- or two-stage Carrier unit drives the thermostat to setpoint within a few minutes, cuts out, and kicks back on before the house has truly settled, leaving rooms clammy while the compressor piles up start cycles. No cheap retrofit rescues an oversized condenser, which is precisely why we run a genuine Manual J load calculation ahead of any replacement and favor variable-speed Infinity Greenspeed or two-stage Performance equipment that can modulate down.
What can I safely check before calling?

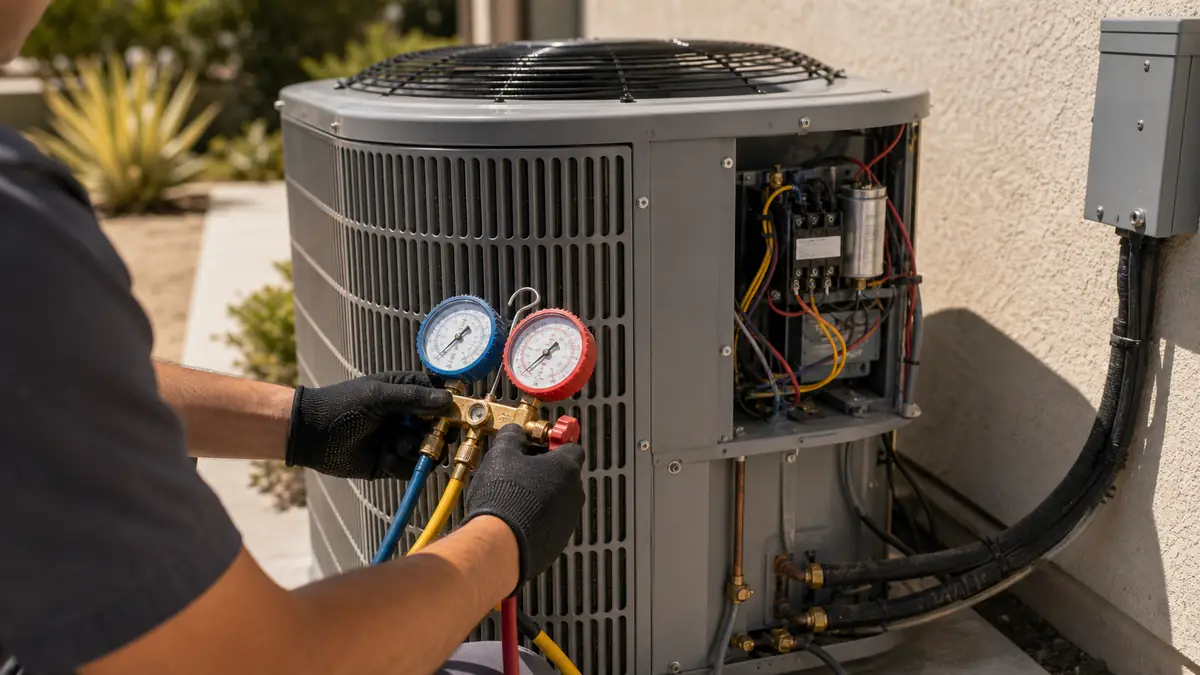

A few safe homeowner checks can rule out the cheap causes. Pull and inspect the filter - if it is gray and packed, replace it and see whether the cycling stops. Walk to the outdoor condenser and clear two feet around it of plants and debris, then look at the coil fins; if they are matted with foothill dust and Arboretum cottonwood, that alone can drive the high-pressure trips. Confirm the thermostat is not in a sunny spot or near a supply vent, which makes it satisfy too fast. Stop before opening the electrical panel on the condenser: capacitors hold a stored charge and the contactor switches 240 volts, so capacitor testing, refrigerant work, and board diagnosis belong to a technician.
What does fixing short cycling cost?
The cause sets the price. A coil cleaning and a fresh filter to stop high-pressure trips is the low-cost lane and often the whole fix. A weak run capacitor causing hard starts is $150 to $450. Low refrigerant from a leak - find, repair, and recharge - runs $225 to $1,500 depending on where the leak hides. A control or sensor board on a communicating Infinity system is $400 to $2,000. The one cause with no cheap cure is an oversized condenser; there the honest answer is right-sizing the next system with a Manual J calc rather than spending on parts that will not change the cycling.
When is the control or board the cause?
On communicating Infinity systems, short cycling can come from sensor or comm faults rather than the refrigerant side. Code 44 points at air-delivery restriction, codes 54 and 56 at suction and outdoor-coil thermistors reading out of range, and a flaky control board can cut cycles short. We read the fault history off the Infinity System Control first, verify the sensors, and only then look at boards ($400 to $2,000). We do not chase a board when the real problem is a coil that has not been washed in five summers.
Common questions
My Carrier AC turns on and off every few minutes in Arcadia - is that bad?
Yes, short cycling wears the compressor and wastes energy. On Arcadia's hottest days a common trigger is the system tripping on high pressure from a dirty condenser coil or low airflow, then restarting. Other causes are a clogged filter, low refrigerant, a failing capacitor, or an oversized unit. The fix depends on which - start with the filter and coil.
Can an oversized Carrier AC cause short cycling?
Yes, and it turns up often on Arcadia replacements where someone upsized the old unit. Too large a condenser races the thermostat to setpoint, shuts down, and fires back up minutes later, never running long enough to pull out humidity or cool the house evenly. Once it is in the ground there is no inexpensive cure, which is why a Manual J load calc comes before we quote any replacement.
Does short cycling mean I need a new compressor?
Usually not. Most short cycling traces to airflow, a dirty coil, refrigerant charge, a control or sensor issue, or oversizing - not the compressor itself. We diagnose the cause before recommending any major part, and we will not condemn a compressor to fix a problem a coil cleaning solves.
Related: frozen evaporator coil, AC repair, short cycling in Santa Anita Oaks, and maintenance plans.
