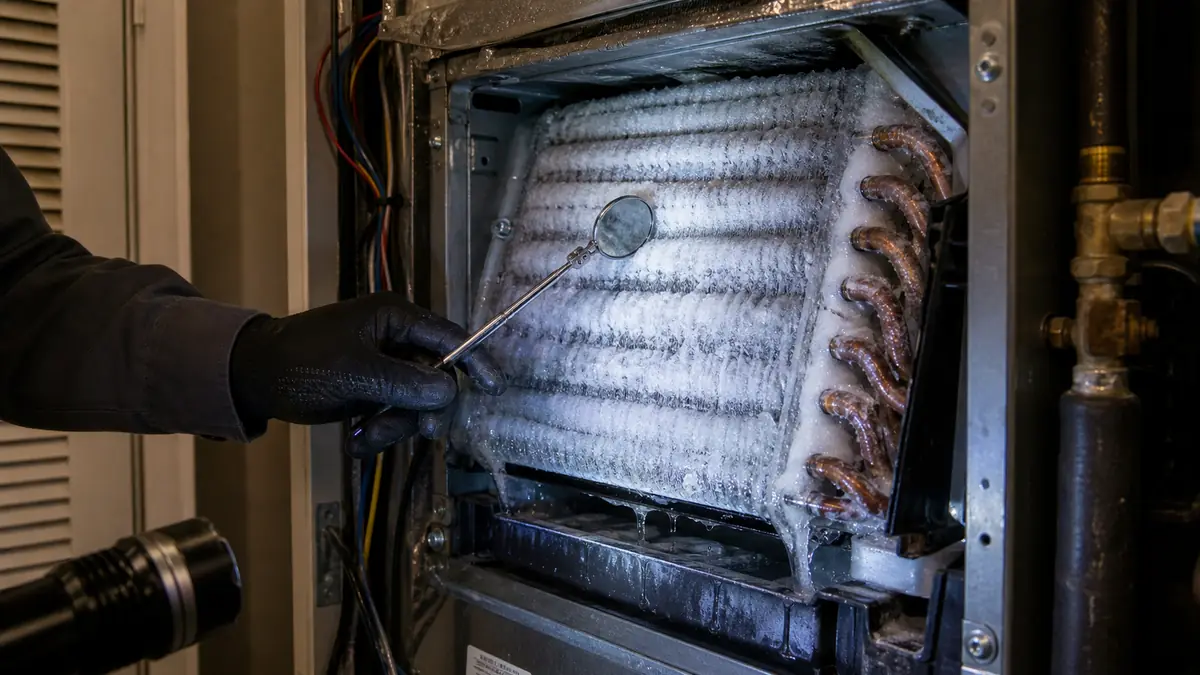

Carrier Frozen Evaporator Coil in Arcadia, CA
Up front: Arcadia Carrier HVAC diagnoses iced Carrier evaporator coils across Arcadia 91006, Lower Rancho, and Peacock Village - almost always an airflow restriction or low refrigerant, not a cold thermostat setting. Turn cooling off and run the fan to thaw, then call (213) 766-5980 or book online; refrigerant repairs run $225 to $1,500.
Fast reference
- A frozen coil is caused by too little airflow or low refrigerant, not by setting the thermostat too low.
- First move: switch cooling off, set fan to On to thaw, and replace a dirty filter.
- Never run cooling on an iced coil - it can slug liquid back and damage the compressor.
- Common Arcadia causes: clogged filter, undersized return, dirty coil, failed blower, refrigerant leak.
- Repair lanes: filter/coil clean low cost; refrigerant $225 to $1,500; blower $450 to $2,300.
- Service area: Arcadia 91006, 91007, 91066, 91077. Hours: Mon-Fri 8am-6pm, Sat 9am-3pm.
Why does an evaporator coil freeze in the heat?
The physics catch people off guard: ice forms when the coil gets too cold, and the coil gets too cold when not enough warm room air passes over it. On Arcadia's tight 1950s ranch ductwork, a half-blocked filter or an undersized return drops airflow below what the Carrier coil needs, the coil temperature falls past freezing, and the moisture condensing on it turns to ice instead of draining away. Low refrigerant from a slow flare or coil leak does the same thing by lowering the coil's operating pressure. Either way the system cools worse and worse as the ice grows, until airflow stops entirely.
What should I do right now?
Three steps, in order: turn the thermostat from Cool to Off, set the fan from Auto to On so the blower keeps moving room-temperature air over the coil to melt the ice (give it a few hours), and pull the filter - if it is gray and packed, replace it. Do not switch cooling back on while ice remains. Once it is fully thawed and you have a clean filter, try cooling again. If the coil ices a second time, the cause is mechanical and needs a technician; running it iced risks the compressor.
What is actually wrong?
| Clue | Likely cause / first check | Typical lane |
|---|---|---|
| Filter packed, weak airflow at vents | Clogged filter / undersized return (Infinity code 44) | Filter low cost; duct work varies |
| Coil dirty, never serviced | Dirty evaporator coil restricting airflow | Coil cleaning, modest |
| Blower weak or silent | Failed ECM blower motor or module | $450 - $2,300 |
| Cools poorly for weeks, then ices | Low refrigerant from a leak | $225 - $1,500 |
How does a tech diagnose the root cause?
Once the coil is fully thawed, a technician works the airflow side first because it is the most common culprit. We check static pressure across the air handler, inspect the filter and return sizing, and look at the evaporator coil for dirt that insulates it. If airflow is adequate, the next step is the refrigerant side: connecting gauges to read suction pressure and superheat, which low refrigerant from a leak drives out of range. A failed or weak ECM blower motor that cannot move rated airflow is checked directly. On a communicating Infinity system, code 44 flags excessive air-delivery restriction and points straight at the airflow path. The goal is to separate an airflow problem from a refrigerant problem before any part or recharge is quoted.
What does a frozen-coil repair cost?
It depends entirely on the root cause, which is why we diagnose before quoting. If the problem is airflow, the fix can be as cheap as a new filter and a coil cleaning - low cost and often same-visit. A failed ECM blower motor that starved the coil runs $450 to $2,300. Low refrigerant from a leak means leak search, repair, and recharge at $225 to $1,500, with the high end reserved for a coil or flare leak rather than a simple top-off. Correcting an undersized return or crushed duct run, the durable cure on many Arcadia ranch homes, falls under duct repair and varies with the scope.
How does this tie to Arcadia ductwork?
Frozen coils and Arcadia's duct stock go together. The same undersized returns and crushed flex runs that leave back bedrooms warm also starve the coil of return air, so a home with chronic airflow problems will freeze a coil every summer until the ducts are corrected. If we thaw your coil and find the root cause is airflow, the durable fix is often duct repair and sealing, not just another filter. A correctly sized return keeps the coil above freezing and the whole system happier.
Common questions
There is ice on my Carrier indoor coil or refrigerant line - what do I do?
Turn the cooling off and set the fan to On so the blower keeps moving room-temperature air over the coil to thaw it - that can take a few hours. Do not run cooling while it is iced, which can slug liquid back to the compressor. Replace a dirty filter. Once thawed, if it ices again, you have an airflow or refrigerant fault that needs a technician.
Why does my Carrier coil freeze on a hot Arcadia day?
It sounds backwards, but freezing comes from too little heat reaching the coil, not too little cold. A clogged filter, undersized return, or dirty coil starves airflow, so the coil temperature drops below freezing and condensation turns to ice. Low refrigerant from a leak does the same by dropping coil pressure. Both are common on Arcadia ranch homes with tight ductwork.
How much does fixing a frozen Carrier coil cost?
If it is airflow, the fix can be as cheap as a filter and a coil cleaning. If it is low refrigerant from a leak, repair and recharge runs $225 to $1,500 depending on where the leak is. A failed blower motor that killed airflow runs $450 to $2,300. We find the root cause before quoting.
Related: AC short cycling, duct repair and sealing, AC repair, and maintenance plans.
